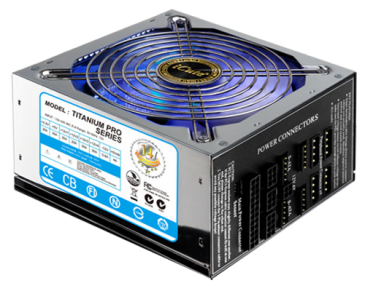

Titanium (Modularized)

Specifications

Model:

AP-550AS

AP-650AS

AP-1050AS

Type:

Intel Form Factor ATX V2.2/2.3(EPS12V2.91)

Certifications:

80 PLUS

PFC:

APFC

Input Voltage:

100-240Vac (FullRange)

Input Current:

5.6A@110Vac, 2.8A@220Vac (AP-550AS)

6.8A@110Vac, 3.4A@220Vac (AP-650AS)

11.4A@110Vac,5.7A@220Vac(AP1050AS)

InputFrequencyRange:

47-63Hz

Output Capacity:

500W  (AP-550AS)

600W  (AP-650AS)

1000W(AP-1050AS)

Fan:

120mm Sleeve Bearing Fan

Power Good Signal:

100~500ms

Hold Up Time:

>17ms

Efficiency:

>80%

MTBF:

>100,000 Hours

Protection:

OVP / UVP / OPP / OTP / SCP

Dimension:

150 (W)x 158(D) x 86(H)mm

Operation Temperature:

0~40°C (Nominal Input Voltage)

Safety:

CE / FCC / CB / TUV / FIMCO / NEMKO / BSMI / CCC

Connector:

20+4 PinMBx 1

4+4 Pin ATX 12V x 1

6+2 Pin PCI-e x 2 (AP-550AS, AP-650AS)

6+2 Pin PCI-e x 4 (AP-1050AS)

SATA x4 (AP-550AS, AP-650AS)

SATA x6 (AP-1050AS)

4 Pin Peripheral x 6 (AP-550AS, AP-650AS)

4 Pin Peripheral x 7 (AP-1050AS)

4 Pin Floppy x 2

Warranty:

3 Years
