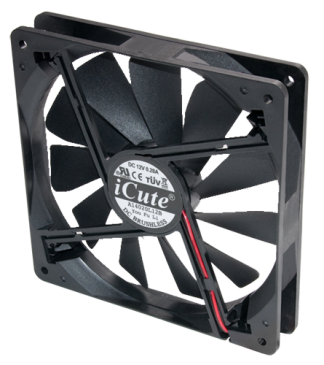

Two Ball Bearing

Specifications

Model (Dimension & Color):

120 x 120 x 25 mm

ACC-FAN-2BALL-12

(Black)

140 x 140 x 25 mm

ACC-FAN-2BALL-14

(Black)

Speed (R.P.M.):

1,200 RPM ±10%

Air Flow (CFM):

(120mm)45 CFM ±10%

(140mm)60 CFM ±10%

Air pressure (mmH2O):

(120mm)1.66 mmH2O ±10%

(140mm)1.43 mmH2O ±10%

Fan Noise Level (dBA):

 < 16 dBA

Bearing Type:

Two Ball Bearing

Fan Life Expectancy:

50000Hrs/25℃

Voltage:

12 VDC

Current (Ampere):

0.4A

Input (Watt):

4.8W & +/ - 10%

Safety:

CE / TUV / UL

Connector:

4 PIN
