Fluid Dynamic

Specifications

Model (Dimension & Color):

140 x 140 x 25 mm

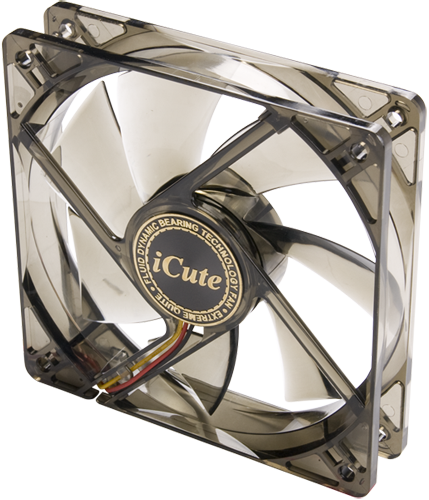

ACC-FAN-FDB11201

(Transparent Black)

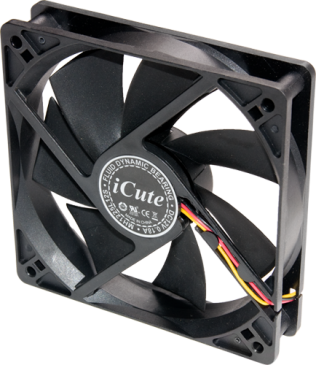

ACC-FAN-FDB11202

(Black)

ACC-FAN-FDB1124B

(Blue LED)

Speed (R.P.M.):

1,200 RPM ±10%

Air Flow (CFM):

40 CFM ±10%

Air pressure (mmH2O):

0.79 mmH2O ±10%

Fan Noise Level (dBA):

 < 19 dBA

Bearing Type:

Fluid Dynamic Bearing

Fan Life Expectancy:

100000Hrs/25℃

Voltage:

12 VDC

Current (Ampere):

 0.8A

Input (Watt):

2.16W & +/ - 10%

Safety:

CE / TUV / UL

Connector:

3 PIN
