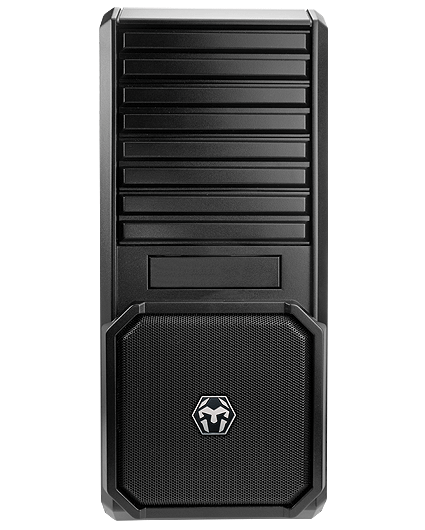

Ares II

Specifications

Model:

Q-02

Dimension:

185(W) x 480(D) x 455(H) mm

Material & Thickness:

SECC & 0.5mm

Motherboards:

ATX

Drive Bays:

5.25" Drive Bay x 9

(Free 3.5" HDD Anti-vibration Bracket x 2 , FDD Bracket x 1)

I/O Panel:

eSATAx1/USB x 2 / AUDIO x 1

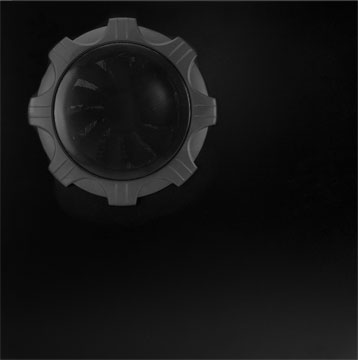

Cooling System:

Front   :

140mm fan x 2 / 120mm fan x 3

Rear

(140/120mm) fan x 1

Top    :

(140/120mm) fan x 2

Bottom:

(140/120mm) fan x 1

Side   :

120mm fan x 1

Expansion Slots:

7

Power Supply:

PS 2
