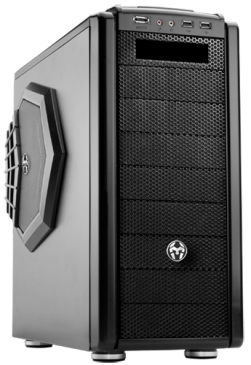

Thunder Emperor

Specifications

Model: K-01

Dimension:                     215(W) x 475(D) x 455(H) mm

Material & Thickness:   SECC & 0.6mm

Motherboards:                ATX

Drive Bays:                      5.25" Drive Bay x 9

                                         (Free 3.5" HDD Anti-vibration Bracket x 3 , FDD Bracket x 1)

I/O Panel:                        E-SATA x 1/ USB x 2 / AUDIO x 1

Cooling System:

        Front   :                    140mm fan x 2 / 120mm fan x 3

        Rear   :                   (140/120mm) fan x 1

        Top    :                    (140/120mm) fan x 2

        Bottom:                  (140/120mm) fan x 1

        Side   :                    (4G)140/120mm fan x2

                                        (4GA) 140/120mm fan x2

                                        (5G)  220mm fan x1

Expansion Slots:          7

Power Supply:               PS 2
